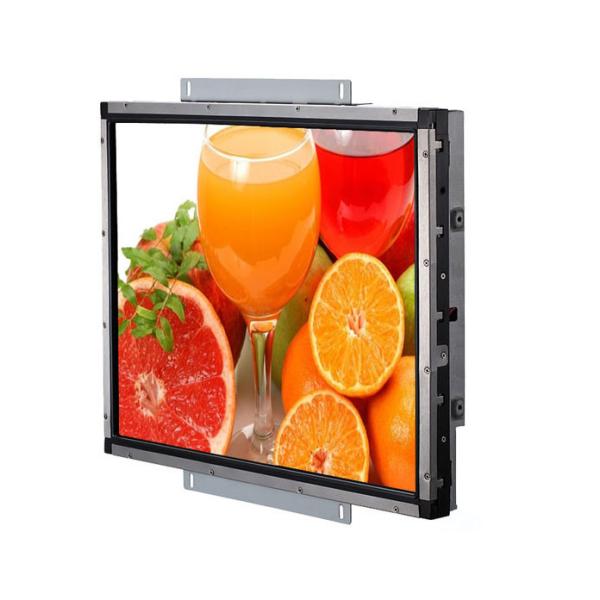

19 Inch 4:3 Open Frame Touch Lcd Display Monitor All In One Pc 300nits
Description:
Applications:
Stock exchanges, Traffic control centers, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
Specifications:
| Display Type | 4:3 Ratio 19Active matrix TFT-LCD | ||||
| Active Area | 15.6(376mm)×11.85(301mm) | ||||
| Monitor Dimensions | Width: 415mm Width with brackets:436 mm Height with brackets: 364mm | ||||
| Suggested Resolution | 1280×1024 @ 60Hz | ||||
| Support Colors | 16.7M | ||||
| Brightness(Typ.) | Pure LCD Panel | 300cd/m2 | |||
| With SAW Glass Sensor | 275cd/m2 | ||||
| Response Time(Typ.) | 6ms | ||||
Viewing Angle (Typ.at CR10) | Horizontal(left/right) | 80°/80° | |||
| Vertical(up/down) | 80°/80° | ||||
| Contrast Ratio(Typ.) | 800:1 | ||||
| Video Input | Dual Analog RGB and DVI video format | ||||
| FrequencyH/V | 30~80KHz / 60~75Hz | ||||
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical (Standard mount brackets are supplied) | ||||
| Touch screen Type | Keetouch 19" SAW 3/4/6mm compact touch sensor | ||||
| Touch System Interface | Having USB and Serial(RS232) interface | ||||
| Touch Response time | USB/Serial: 8.4/10.4ms | ||||
| Agency Approval | FCC,CE,RoHS | ||||
| Regular Warranty | 5 years for SAW Sensor; 3 years for controller; 1 year for LCD | ||||
Accessories:
Power Cable: A North American power cable or an European power cable is included according to the end user’s area.
Power Supply Brick:A power supply brick is included.
Touch/Video/DVI Cables: Detachable serial or USB touch cable,video cable and DVI cable are included
L-brackets:Four standard L-brackets are included.
Typical Applications:
Gaming/Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Hospitality
Banking


|
