LCD Video Wall Screen (SAMSUNG DID) |
| Specifications |
| Model No. | ZXT |
| Panel Size | Samsung DID LCD Screen |
| Aspect Ratio | 16:9 |
| Max Resolution Support | 1920x1080/1366x768 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 450 |
| Contrast | 4000:1 |
| Visual Angle (H/V) | 178° |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| DVI | 1 |
| HDMI | 1 |
| D-15 RGB Input(VGA) | 1 |
| YUV/YPbPR | 1(3xBNC) |
| S-(YC) | 1(2xBNC) |
| Composite Video Input/(AV) | 3(3xBNC) |
| Composite Video Output | 2(2xBNC) |
| AUDIO INPUT | 1 |
| Split Screen | Support Picture in Picture(PIP/POP/PAP) |
| Power |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 250W |
| Standby Power Consumption | <=3W |
| Temperature |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%-80% |
| Dimension | 1025.65x579.84x126.73mm |
| Video Wall Controller(Built-in each Screen) |
| Model No. | |
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs |
| VGA | 1*D15 port, support SVGA/XGA/WXGA |
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I,
HDTV |
| Y/C | 2*BNC inputs, support PAL/NTSC all formats |
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display |
| Operate mode | Panel key operation(needs customization) |
| Standard RS232 port( provide free control software) |
| Infrared Remote Control Operation |
| Engineering software | Customized |
| Working temperature | 0~70 °C |
| working humidity | 5~95 %RH |
| AC voltage power supply | 100-240V/50, 60Hz |
| power consumption | Max 300W,according to different Screen models |
| Dimension | 338×295×60(mm) |
| Weight | About 3.5KG |
Advantage
1. LCD splicing screen long life, low maintenance costs.
2. LCD splicing screen viewing angle.
3. LCD splicing screen high resolution, beautiful picture.
4. LCD splicing screen slim and lightweight.
5. Low power consumption, low heat.
6. LCD splicing screen trouble-free long time, low maintenance costs.
7. Innovation, advanced
8. Economic
Features:
1. Narrow design: the narrowest can reach 3.5mm (55did), and it
truly achieves the seamless.
2. Interface type: VGA, DVI and HDMI connected analog signal and
digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection
for remote operation
4. Beautiful wall structure design, be convenient for installation
and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to
60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode
11. Excellent display

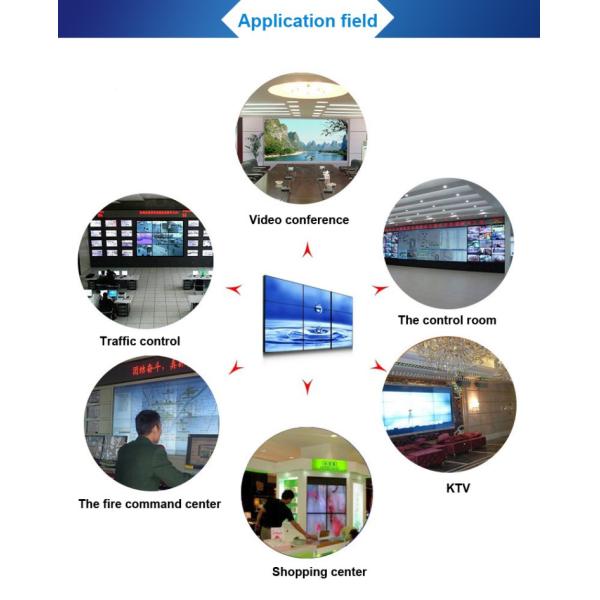

Products application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference center, Talent market, Lottery
center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational
village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company,
etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop, Hotel, Restaurant, travel agency,
Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model houses, Sales offices, the
entrance of elevator, etc.
