55" 3.5mm, 500nits High Definition Wall Mount LCD Video Wall With
Original Panel LCD Screen Video Wall
Manufacturers' Commitments:
We are the original manufacturer, according to the needs of our
customers to design products, all products have patent numbers.
Please tell us your special requirements, specifications, size,
color, functions, and so on
Features:
1. LCD-DID Industrial HD&High-brightness narrow edge LCD.

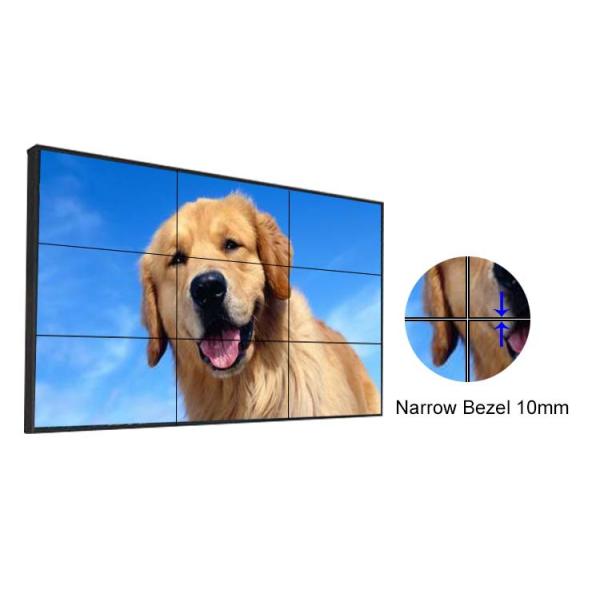

2. Narrow Edge Design: Minimum 1.8mm.
3. High Resolution Ratio: 1920*1080
4. High-brightness: 700cd/sqm
5. Super wide visual angle:178(H)/178(V).
Description:
ZXT DID broadcast monitor chooses gennum project., DID technology
is a high quality image
representative of serial transmission, mainly used in some
professional field of television and radio and
television, the product supports audio embedded solution, at the
same time, supports the highest
resolution to 1080 p 60 hz, which should be more extensive.
Performance Features as follows:
Support a variety of signal ports.
Built-in splicing module, Support splice function
Support Creating one window(PIP) across the screen,roaming
service,scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232(RJ-45)loop-circuit input/output.
Input by remote control with wire,mobile receiver head.
Note:such mode does not
support1080PSF24HZ,1080I48HZ,720P24HZ,720P25HZ,
720P30HZ.
Applications:
| Business Organizations | supermarket, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, star-rated hotels, restaurants, travel
agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops; Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
| Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket
agencies, HR market, lottery centers; Real Estate Property: Apartments,
villas, offices, commercial buildings, model rooms, property brokers; |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
Technical Parameters:
| Specification/Model | LVW-550 |
| Panel Size | 55"LCD-DID |
| Screen Aspect Ratio | 16:9 |
| Visual Angle | Horizontal 178/Vertical178 |
| Brightness | 700cd/sqm |
| Contract Ratio | 3000:1 |
| Resolution Ratio | 1920*1080 |
| Color Components | 16.7M |
| Response Time | 8ms |
| Power Consumption of Stand-alone | 250W |
| Power Supply | Input:AC110-220V-50/60Hz |
| Service Life of Panel | 60000Hours |
| Dimension of Machine Frame(±1mm) | (Width)1215.3mm*(Height)686.1mm |
| Size of Shell Frame(±1mm) | Left side3.7mm/right side1.8mm/ top3.7mm/bottom1.8mm |
| Panel Display Area | (Width)1213.6mm*(Height)684.4mm |
| Shell Color | Black |
| Installation | Wall-mounted |
| Net Weight(approximate) | 33.5kg |
| Working Humidity | 10%-90% |
| Working Temp. | 0-60 Celsius degree |
| Input Port | 3*BNC, 1*VGA, 1*DVI,1*HDMI |
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024, 1600*1200,1920*1080 |
| HDMI Resolution Ratio HDMI | 480I,480P,576I,720P,1080I,1080P |
| Output Port | 1 Video output(BNC) |
| Split Screen/PIP Mode | Two signals image or PIP |
| Splice Function | Multiscreen Splice Function(image processing Function) |
Competitive Advantage:
Digital information display with LCD-DID Industrial
HD&High-brightness narrow edge LCD.Built-in splicing module,
Support splice function,support Creating one window(PIP) across the
screen,roaming service,scaling,PIP Support matrix joint control.
Unique DNX motion supplement image processing technology, Dynamic
image without motion
trail,Splicing image processing RS-232(RJ-45)loop-circuit
input/output.,Input by remote control with wire,mobile receiver
head.
