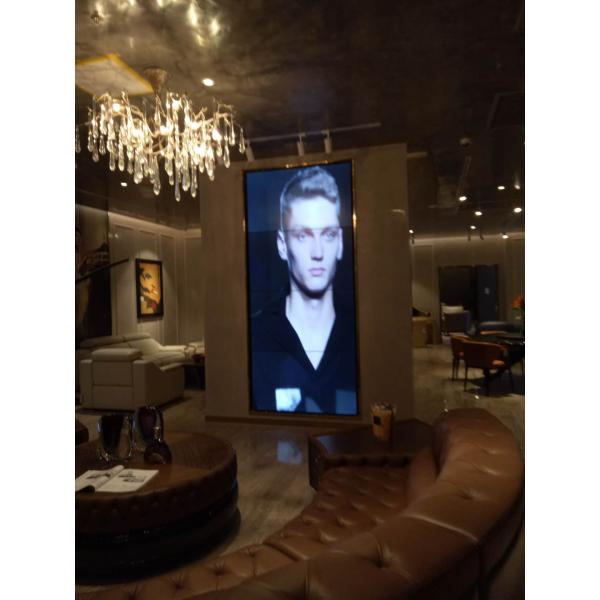

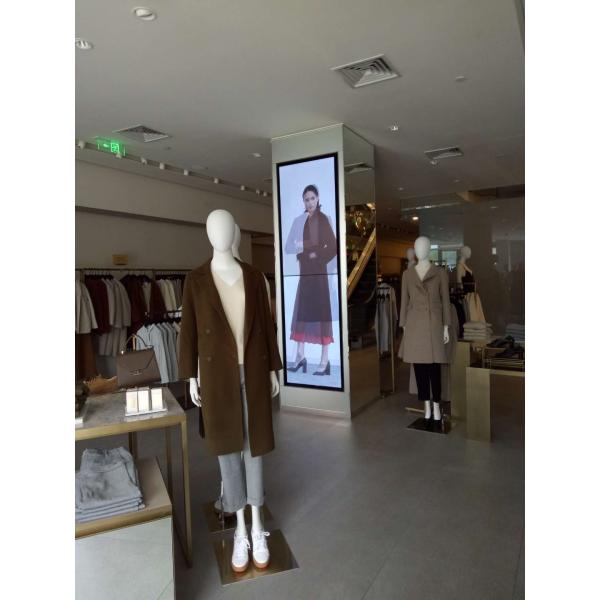

46 Inch 1*3 Full HD Highlight Show Video Wall for Runway Show, Fashion Shops


Features:
Initial original creation “Dynamic super comress technique”,can make low pixel image display clearly in full high definition screen;
Separate processing technique,remove flicker;
Intervein arthmetic,remove “sawtooth”,dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing.

LCD Video wall processor (US-VWPXX)specification
Input: CVBS Each one BNC terminal, support PAL/NTSC all formats, as well as HDTV720P,1080I,1080P
RCBHV: Each one D15 port terminal to support SVGA/XGA/WXGA/UXGA
YPbPr/YCbCr: Re-using the above RGBHV interface, support PAL/NTSC ALL FORMATS, AS WELL as 720P,1080I, 1080P
Output: RGBHV Each one D15 port terminal to support SVGA/XGA/WXGA/UXGA
YPbPr/YCbCr: Each 3 BNC terminals,( re-use the above R.G.B of RGBHV),support PAL/NTSC all formats 720P/1080i HDTV
Operate mode: Panel key operation(needs customization)
Standard: RS232 port( provide free control software)
Infrared: Remote Control Operation

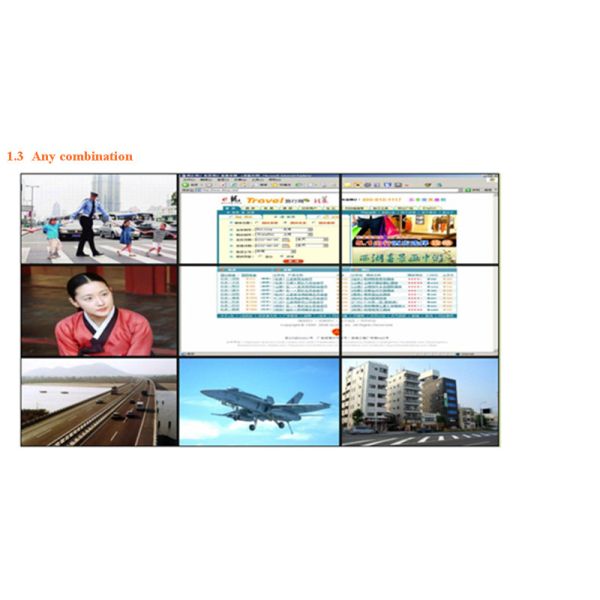

Display: unit combination "Can support up to 14 display units by 1 single machine
, multi-machines can be paralleled to control up to 12x14 display units"
Engineering software: Customized
Working temperature: 0-60 degrees
working humidity: 5-95 %RH
AC voltage power supply: 180-240V/50Hz
power consumption: Max 100W/single machine
Chassis Specifications: 4U standard rack chassis( can choose 2U/1U chassis when there are fewer output units)
Chassis Size: 431x264x350(mm)
Weight: about 15KG

Specification:
