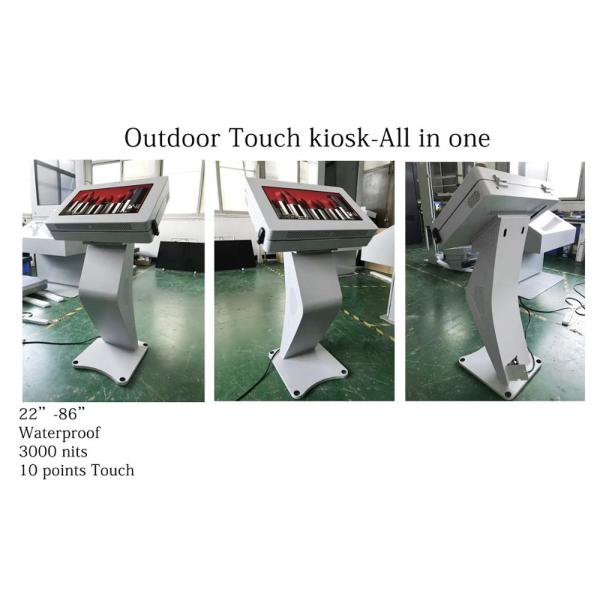

Outdoor 2000nit Fan Cooling System High Brightness Hd Waterproof
Ip65 All In One Interactive Touch Kiosk
Outdoor digital signage specifications:
| Iterm: | outdoor Touch kiosk |
| Screen size: | 32" |
| Display ratio: | 16:9 |
| Resolution(Pixel): | 1920*1080 |
| View angle : | 178°/178° |
| Luminance: | 1500cd/m2,2000cd/m2 , 2500cd/m2 , 2500cd/m2 , 3000cd/m2 3500cd/m2 ,4000cd/m2 ,5000cd/m2 |
| Contrast ratio: | 4000:1 |
| Response time : | 6ms |
| Display area: | 708.48×398.52mm |
| Touch screen optional | Capacitive touch screen / Infrared touch screen / Nano touch screen |
| Operating temperature: | -40°C--+60°C |
| Protection Rating: | IP65 |
| Storage Temperature: | 0-50 degrees |
| Humidity :5%-100% |
| Air conditioner | Voltage Rated:AC110V/60Hz OR other Current Rated:AC 6.5A Power Rated:AC 500W Cooling Capacity:1500W(L35 L35) Heating Capacity:500W(optional) Ambient Temperature:-20℃~55℃ IP Grade:IP65 |
| Radiator | Working Pressure:2bar-40bar Specification: 2Kw-400Kw |
| AC Input: | 110-240V, 50/60Hz |
| Standalone version | RAM:8G SD play |
| Android version | Quad core cortex A8, All winner A31 ,1.2GHz 1G DDR3, android 4.4.2
or above. |
| Windows pc | Quad-core pc / i3 / i5 / i7 intel core |
| Color option: | Silver, white, black or optional |
| Enclosure material | Zinc coated steel+front tempered glass |
| Installation: | Wall mounting/roof hanging/floor standing |
| I/O interface: | 1*USB,1* SD/MMC/MS card slot ,
HDMI/DVI/VGA optional |
Configuration options:
| touch screen | IR/compacitance |
| network version | LAN/WIFI/3G |
| all in one PC | integrated pc board, custom hardware |
| standalone ad display | with profession ad player board |
| monitor only | with HDMI/DVI/VGA input |
Our outdoor digital signage solutions are specially engineered from
the group up to weather the elements with high-brightness,
protective glass and IP65 certification. It can play Ads nomally
under these conditions of heat, cold, rain, snow and dust.d lcd
display
Main feature:
1. IP65 design for outdoor application.
2. High brightness up to 3000cd/m2, readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.
4. Fron tempered glass and anti-glare glass
5. Intelligent light system, brightness of screen auto adjusts according to environment light,
saving energy.
6. Anti-dust, anti-vandal, anti-theft.
7. Customized design for you without additional cost.
8. Screen sizes available 32-82inch
9. Wall mount, roof hanging and free standing(fixed on ground) all available.
10. Security electric circuit design
11. Build in power timer
Web-base functions
² Support pictures, video, music, RSS, slide, Web page, text, etc
media style
² Support showing logo, date/time/week, weather report and instant
subtitles
² User-defined screen model, flexible layout, split screen and full
screen optional
² Program preview, multi-level auditing, security checks at each
level to convey accurate information.
² Terminal group management, multi-users flexible authorization.
² Terminal remote monitoring, real-time view to status , provide
various of business reporting and management reporting.
² Powerful system health monitoring. fault warning, error message
timely tips are allowed.
² Remote terminal system upgrade, intelligent DNS, convenient and
easy to operate and maintain.
² Support WAN, LAN, VPN / WiFi / 3G network publishing,
cross-regional, inter-provincial city, Easy Networking to
multi-network
