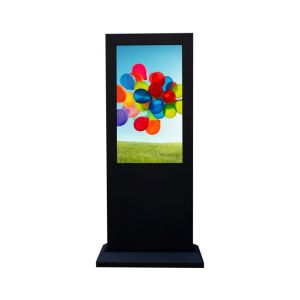

43’’ 49’’ 55’’ Standing Outdoor Windows Waterproof Dustproof Multi
Touch Screen Mall Kiosk Totem
Details
Panel parameter | Size | 49 inch | 55inch |
| Display Area | | 1209.6*680.4 |
| Type | Waterproof IR Dual touch |
| Brand | LG/ Samsung/ AUO |
| Resolution | 1920*1080 |
| Brightness | 1500cd/m*2 |
| Aspect ratio | 16:9 |
| Response time | 6.5MS |
| Contrast | 3000:1 | 4000:1 |
| View angle | 178°/178°(H/V) |
Standard Specification | CPU | IntelG620 |
| Main board | H61 |
| HDD | 500G |
| Memory | 2G |
| Network | Realtek RTL8103EL |
| Audio | YES |
| Wifi or 3G |
built in wireless network card modules WIFI,
support 802.11b/g, external 3G module |
| OSD Language | OPTION |
| System Power Supply | 110V~240V |
| TFT panel grade | Imported A new panel |
| OS | Compatible with Window7, Window8 etc. |
| Case | Water-proof IP65 |
Specification LCD Size: (a-Si Active Matrix TFT LCD,LED Backlit Industrial Grade) 16:9 Full New
Screen Resolution: 1920x1080 Brightness: 1500cd/m2 (visible under Sun light) View of angle: 178 degree
Contrast: 1300:1
Response Time: 10ms 2x 10W Amplified Speaker built in Video Interface: VGA, HDMI, |
Outdoor Protection: IP65,Waterproof, 3-4mm AR Tempered Glass, Vandal Proof Metal material bending welding forming | Outdoor Protection: IP65, Waterproof, 4-5mm AR Tempered Glass, Vandal Proof Metal material bending welding forming |
Fan Cooling mode Total Consumption: 450W | Air Conditioning mode Total Consumption: 480W +500W(Air Conditioning)=980W |

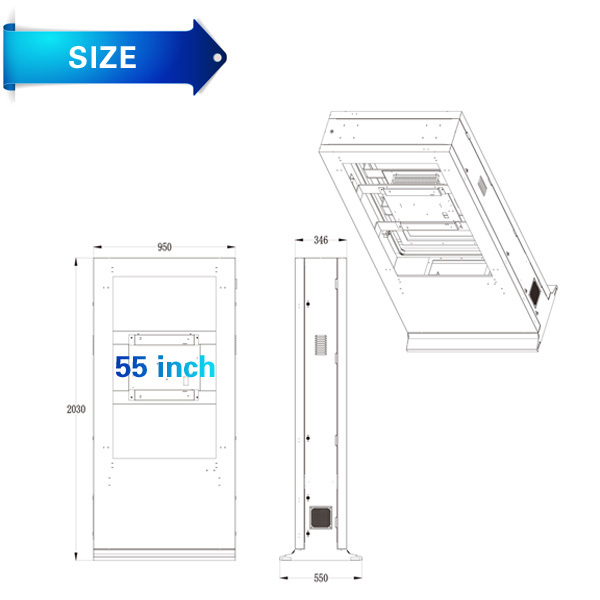

Physical Parameter: Outer dimensions: 650(H) x 1050(W) x 200(D) mm Weight: about 58.0Kg | Physical Parameter: Outer dimensions: 1980(H) x 780(W) x 250(D) mm, Weight: about 135.0Kg |
Touch Screen:
Optional size: 43'',49'', 55'' etc
Touch screen:infared touch screen--Waterproof
* Resolution: 32768*32768
* Material :pure anti-glare glass
* Brightness: 300cd/mm
* lens transmission :>95%
* Orientation precision: < 2mm0.080 inch
* Single-point touch Life expectancy :more than 50,000,000 times
* Surface hardness: equivalent to glass,7 Mohs
* Dust-proof, explosive proof.vandal-proof, waterproof
* Durability:7 years
Brightness Management
Brightness Control: Automatic Brightness Control (with light
brightness sensor), changing with sunlight strong or weak.
Temperature Management
Working temperature: -10 to 50 centigrade
Storage temperature: -20 to 60 centigrade
Working humidity: 10%-85%
Storage humidity: 5%-90%
Temperature Control: Start Air conditioning (fan to wall product) cooling automatically, upon its internal temperature over 35°;
Cooling stop upon its temperature below 30°(28°to wall product), air supply device still works.
If it internal temperature over 60°, it’ll reduce brightness or turn off back light automatically, so as to
lower temperature.
Power Management
Power Supply: AC 100V-240V, 60/50Hz
Standby Consumption: <=3W
Heat Dissipation: Industrial Air Conditioning (fan to wall mount
product)
