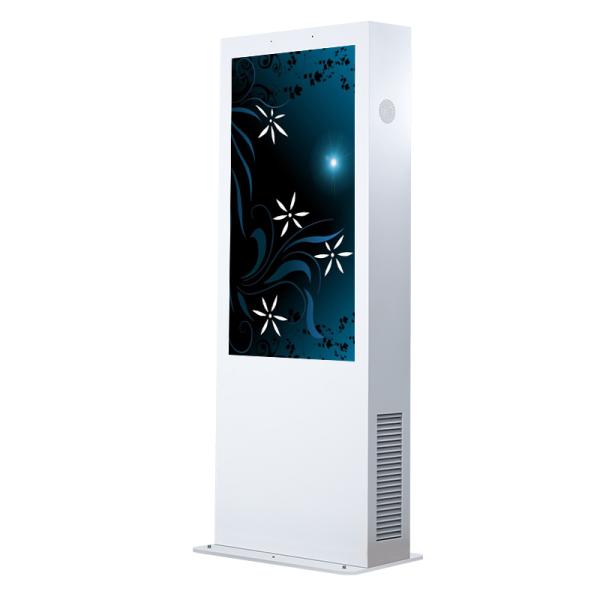

Outdoor IP65 Waterproof Touch Screen Advertising Standee, Wifi
Windows 10 Remote Control Media Player Totem, Air-conditioner
inbuilt Vandal Resistant Outdoor Wayfinder Machine

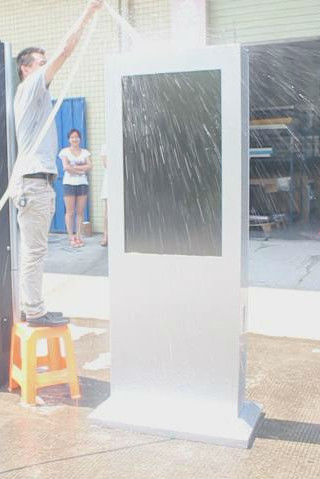

Our outdoor waterproof advertising kiosk has gone through very
strict waterproof testing before shipment.
1.IP65 design for outdoor application.
2. High brightness up to 2000cd/m2, readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C
environment temperature.
4. Fron tempered glass and anti-glare glass
5. Intelligent light system, brightness of screen auto adjusts
according to environment light, saving energy.
6. Anti-dust, anti-vandal, anti-theft.
7. Customized design for you without additional cost.
8. Screen sizes available 19-82inch
9. Wall mount, roof hanging and free standing(fixed on ground) all
available.
10. Security electric circuit design
11. Build in power timer
| Panel size | 43" |
| Display area(mm)/mode | 941*530 |
| Maximum resolution | 1920 X 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.510(H)×0.510(V) |
| Brightness (nits) | 1500cd/m2 |
| Contrast | 2000:1 |
| Visual angle | 178°/178°/178°/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Power Supply | AC 100~240V |
| Standy Power Consumption | 0.3W |
| Working Temperature | 0℃ ~ 40℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Appearance | Metal Enclosure( other type or colors option) |
| Max Power Consumption | 125W |
Outdoor Protection: IP65, Waterproof,
4-5mm AR Tempered Glass, Vandal Proof
Metal material bending welding forming
Brightness Management
Brightness Control: Automatic Brightness Control (with light
brightness sensor), changing with sunlight strong or weak.
Temperature Management
Working temperature: -10 to 50 centigrade
Storage temperature: -20 to 60 centigrade
Working humidity: 10%-85%
Storage humidity: 5%-90%
Temperature Control: Start Air conditioning (fan to wall product)
cooling automatically, upon its internal temperature over 35°;
Cooling stop upon its temperature below 30°(28°to wall product),
air supply device still works.
If it internal temperature over 60°, it’ll reduce brightness or
turn off back light automatically, so as to lower temperature.
Power Management
Power Supply: AC 100V-240V, 60/50Hz
Standby Consumption: <=3W
Heat Dissipation: Industrial Air Conditioning (fan to wall mount
product)
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more
than 10years |
| Heat Dissipation | Air-conditioner built-in, with patent fully intelligent temprature
control technology including heating function |
| Speaker | 10W*2 |
| Power Consumption | 150W, Industrial-grade power board, brightness auto-adjustment to
lower power consumption |
| Photo formats | JPEG ,BMP ,GIF ,PNG |
| Audio formats | MP3,WAV,WMA |
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, |
| Touch Type | 10-point capacitive touch foil |
| Normal Working Temperature | -40 to 55 Celsius degree |
| Accessory | Power Cables, English Manual |
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic |
| Internet connection | WIFI, LAN |
| The operating system | Windows 10 |
| CPU | I3 |
| Memory | 4G |
| SSD | 64G |
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1, WIFI |
If you have any other questions, please contact our salesman as
soon as possible.
